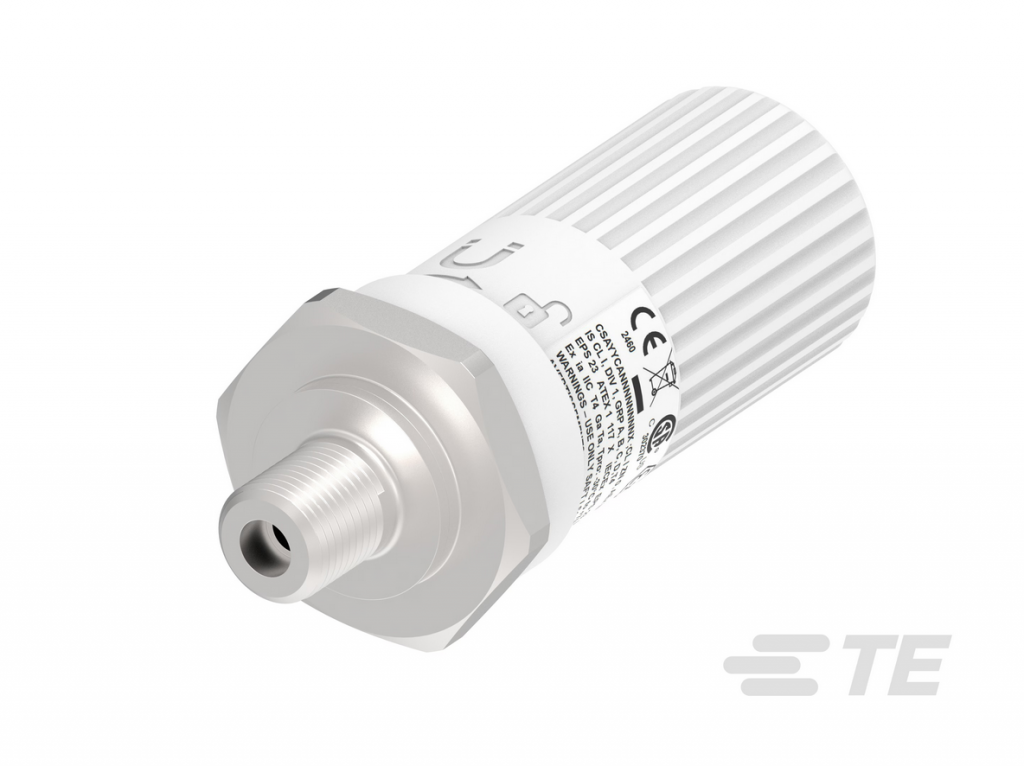

65XXN – Wireless Bluetooth Pressure Transducer

The wireless high-precision 65XXN is certified as an explosion-proof pressure transducer. By eliminating the need for complex wiring, it enables reliable remote monitoring and effortless configuration via Bluetooth® Low Energy. It accurately measures absolute or relative pressure — even in demanding applications involving contaminated water, steam, or mildly corrosive fluids.

Using no O-rings or other organic sealing materials exposed to the media all wetted components in the 65XXN are made from 316L stainless steel ensuring long-term durability. The pressure transmitter 65XXN is weatherproof as well as tested against shock and vibrations making it the ideal solution for heavy industrial use. The pressure sensors are optionally HazLoc certified for the use in explosive atmospheres for the United States, Canada, and internationally with ATEX and IECEx certificates.

Beside this version exists the 69XXN absolut pressure transmitter with LoRaWAN® communication protocol.

Features

  • Bluetooth® Low Energy
  • Optionally certified for explosive atmosphere (ATEX (Zone 0), IS (Division 1), IEC)
  • Light weight and small form factor (max weight: 170g with battery)
  • Programmable thresholds for event detection
  • Easy device configuration via TE™ SensorConnect smartphone application
  • BSPP or NPT thread options available
  • Supports pressure ranges from 2 to 350 bar (30 to 5000 PSI)
  • Accuracy up to ±0.1%FS
  • Weatherproof (IP66/IP67)
  • Wide operating temperature range from -30°C to 75°C
  • Rugged construction: can withstand 50g shock/8g vibration.
  • Battery life of up to 8 years (depending on measurement frequency and ambient temperature)

Applications

  • Oil well monitoring
  • Pipeline monitoring
  • Corrosive fluids and gas measurement systems
  • Condition monitoring

Certifications

  • IS Class I, Division 1 Groups A, B, C, D, T4
  • Class I Zone 0, AEx ia IIC T4 Ga
  • Ex ia IIC T4 Ga
  • EN IEC 60079-0:2018
  • EN IEC 60079-11:2012
  • IECEx i, IECEx e
  • ATEX II 1G Ex ia IIC T4 Ga, Process Temp: -30°C ≤ Ta ≤ +75°C
