Schematic representation of the membrane orientation in relative pressure measurement with a sensor where the pressure P1 is greater than Pamb.
With the help of relative pressure sensors one compares a pressure in relation to the ambient pressure and receives a signal, which is proportional to the pressure difference.
The sensors offered here are suitable for applications in which there is a fixed ratio between the lower and the higher pressure. The measuring pressure P1 must be greater than the ambient pressure Pamb.
The AMSYS range of relative pressure sensors ranges from simple, uncompensated silicon cells over OEM sensors to high-precision amplified transmitters with standard output values.
Product overview
Analog OEM sensors*
- Uncompensated OEM pressure sensors without amplification
- Compensated OEM pressure sensors without amplification
- Compensated OEM pressure sensors with analog pressure output
- Compensated OEM pressure sensors with switching outputs and analog output
- Media compatible OEM pressure sensor with analog output
Digital OEM sensors
- Compensated OEM pressure sensors with digital pressure and temperature output
- Media compatible OEM pressure sensors with digital output
Analog/digital OEM sensors
* OEM sensors (original equipment manufacturer) are components that are still installed in a higher-level system (for example, by soldering to printed circuit boards)
PCB modules**
Transmitters***

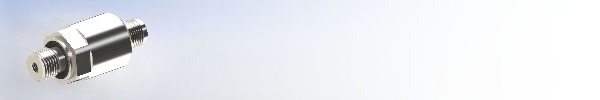

- Pressure transmitter with analog pressure output
- Media compatible pressure transmitter with analog output

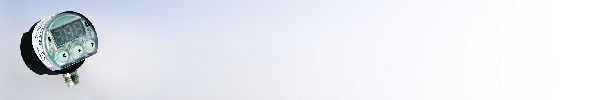

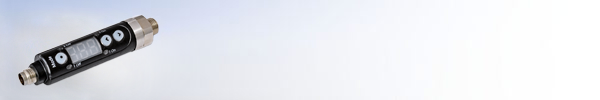

Pressure switch with display
Pressure transmitters wireless
- Pressure transmitter with bluetooth signal and battery powered
- Pressure transmitter with bluetooth and analog signal
** PCB modules (printed circuit board) are printed circuit board-mounted OEM sensors with additional industrial electronics for installation in a housing.
*** Transmitters are compensated, amplified and ready-to-use sensors with standardized output in a housing for direct installation
Uncompensated OEM pressure sensors without amplification
| type | pressure range | temp. (°C) | sensitivity (mV/psi) | non-linear (%FS) |
|---|---|---|---|---|
| SM9G-001 (not for new designs) | 0-0,15 psi | -40..-85 | 400 | ±0,1 |
| SM9G-006 (not for new designs) | 0-0,6 psi | -40..-85 | 200 | ±0,1 |
| SM9G-015 (not for new designs) | 0-1,5 psi | -40..-85 | 80 | ±0,1 |
| type | pressure range | temp. (°C) | sensitivity (mV/psi) | non-linear (%FS) |
|---|---|---|---|---|
| SM5G-005S (not for new designs) | 0-5 psi | -40..+125 | 24 | ±0,35 |
| SM5G-015S (not for new designs) | 0-15 psi | -40..+125 | 8 | ±0,2 |
| SM5G-050S (not for new designs) | 0-30 psi | -40..+125 | 3,5 | ±0,2 |
| SM5G-080S (not for new designs) | 0-80 psi | -40..+125 | 1,5 | ±0,2 |
back to the product overview
Compensated OEM pressure sensors without amplification
| type | pressure range | temp. (°C) | sensitivity (mV/psi) | non-linear (%FS) |
|---|---|---|---|---|
| SM5652-003 | 0-0,3 psi | -40..+125 | 83,3 | ±0,5 |
| SM5652-008 | 0-0,8 psi | -40..+125 | 31,25 | ±20,3 |
| type | pressure range | temp. (°C) | sensitivity (µV/V/mmHg) | non-linear (%FS) |
|---|---|---|---|---|
| 1620 | -50 to 300 mmHg | 5 .. +40 | 5.0 | ±1,5 |
back to the product overview
Compensated OEM pressure sensors with analog pressure output
| type | pressure range | temp.(°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 6916-0005-D | 0-5 mbar | -25..+85 | 0,03 | ±1,5 |
| AMS 6916-0010-D | 0-10 mbar | -25..+85 | 0,03 | ±1,5 |
| AMS 6916-0020-D | 0-20 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 6916-0050-D | 0-50 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 6916-0100-D | 0-100 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 6916-0200-D | 0-200 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 6916-0350-D | 0-350 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 6916-1000-D | 0-1000 mbar | -25..+85 | 0.03 | ±0,5 |
| type | pressure range | temp.(°C) | resolution (%FS) | error (%FS)RT | |
|---|---|---|---|---|---|
| ME750 | 0-1,6 bar | -25..+125 | 0,4 | ±1,5 | |
| ME750 | 0-2 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-2,5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-4 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-6 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-10 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-16 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-20 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-25 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-40 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-50 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-100 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-200 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-250 bar | -25..+125 | 0,4 | ±1,0 | |
| ME750 | 0-400 bar | -25..+125 | 0,4 | ±1,5 | |
| ME751 | 0-1,6 bar | -25..+125 | 0,4 | ±1,5 | |
| ME751 | 0-2 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-2,5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-4 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-6 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-10 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-16 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-20 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-25 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-40 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-50 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-100 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-200 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-250 bar | -25..+125 | 0,4 | ±1,0 | |
| ME751 | 0-400 bar | -25..+125 | 0,4 | ±1,5 | |
| ME752 | 0-1,6 bar | -25..+125 | 0,4 | ±1,5 | |
| ME752 | 0-2 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-2,5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-4 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-6 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-10 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-16 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-20 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-25 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-40 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-50 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-100 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-200 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-250 bar | -25..+125 | 0,4 | ±1,0 | |
| ME752 | 0-400 bar | -25..+125 | 0,4 | ±1,5 |
back to the product overview
| type | pressure range | temp.(°C) | resolution (%FS) | error (%FS)RT | |
|---|---|---|---|---|---|
| ME770 | 0-0,5 bar | -25..+125 | 0,4 | ±1,5 | |
| ME770 | 0-1 bar | -25..+125 | 0,4 | ±1,5 | |
| ME770 | 0-2 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-10 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-16 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-20 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-50 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-100 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-200 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-250 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-400 bar | -25..+125 | 0,4 | ±1,0 | |
| ME770 | 0-600 bar | -25..+125 | 0,4 | ±1,5 | |
| ME771 | 0-0,5 bar | -25..+125 | 0,4 | ±1,5 | |
| ME771 | 0-1 bar | -25..+125 | 0,4 | ±1,5 | |
| ME771 | 0-2 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-10 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-16 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-20 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-50 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-100 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-200 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-250 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-400 bar | -25..+125 | 0,4 | ±1,0 | |
| ME771 | 0-600 bar | -25..+125 | 0,4 | ±1,5 | |
| ME772 | 0-1 bar | -25..+125 | 0,4 | ±1,5 | |
| ME772 | 0-2 bar | -25..+125 | 0,4 | ±1,5 | |
| ME772 | 0-5 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-10 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-16 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-20 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-50 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-100 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-200 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-250 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-400 bar | -25..+125 | 0,4 | ±1,0 | |
| ME772 | 0-600 bar | -25..+125 | 0,4 | ±1,5 |
back to the product overview
| type | pressure range | temp.(°C) | resolution (%FS) | error (%FS)RT |
|---|---|---|---|---|
| ME780 | 0-0,5 bar | -25..+125 | 0,4 | ±1,5 |
| ME780 | 0-1 bar | -25..+125 | 0,4 | ±1,5 |
| ME780 | 0-2 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-5 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-10 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-20 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-50 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-100 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-200 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-250 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-400 bar | -25..+125 | 0,4 | ±1,0 |
| ME780 | 0-600 bar | -25..+125 | 0,4 | ±1,5 |
back to the product overview
| type | pressure range | temp.(°C) | resolution (%FS) | error (%FS)RT |
|---|---|---|---|---|
| ME790 | 0-3 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-5 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-10 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-20 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-50 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-100 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-200 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-250 bar | -25..+125 | 0,4 | ±1,0 |
| ME790 | 0-400 bar | -25..+125 | 0,4 | ±1,5 |
back to the product overview
Compensated OEM pressure sensors with switching outputs and analog output
| type | pressure range | temperature (°C) | resolution (mbar) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 5105-0005-D | 0-5 mbar | -25..+85 | 0,07 | ±1,5 |
| AMS 5105-0010-D | 0-10 mbar | -25..+85 | 0,07 | ±1,5 |
| AMS 5105-0020-D | 0-20 mbar | -25..+85 | 0,07 | ±1,0 |
| AMS 5105-0050-D | 0-50 mbar | -25..+85 | 0,07 | ±1,0 |
| AMS 5105-0100-D | 0-100 mbar | -25..+85 | 0,07 | ±1,0 |
| AMS 5105-0200-D | 0-200 mbar | -25..+85 | 0,07 | ±0,5 |
| AMS 5105-0350-D | 0-350 mbar | -25..+85 | 0,07 | ±0,5 |
| AMS 5105-1000-D | 0-1000 mbar | -25..+85 | 0,07 | ±0,5 |
| AMS 5105-2000-D | 0-2000 mbar | -25..+85 | 0,07 | ±0,5 |
| AMS 5105-4000-D | 0-4000 mbar | -25..+85 | 0,07 | ±0,5 |
| AMS 5105-7000-D | 0-7000 mbar | -25..+85 | 0,07 | ±0,5 |
back to the product overview
Media compatible OEM pressure sensor with analog output
| type | pressure range | temp. (°C) | error (%FSO) | non-linear (%FSO) |
|---|---|---|---|---|
| 86A-001PG | 0-1 psi | -20..+85 | ±7,0 | ±0,3 |
| 86A-002PG | 0-2 psi | -20..+85 | ±7,0 | ±0,3 |
| 86A-005PG | 0-5 psi | -20..+85 | ±5,0 | ±0,3 |
| 86A-015PG | 0-15 psi | -20..+85 | ±3,0 | ±0,3 |
| 86A-030PG | 0-30 psi | -20..+85 | ±3,0 | ±0,3 |
| 86A-050PG | 0-50 psi | -20..+85 | ±3,0 | ±0,3 |
| 86A-100PG | 0-100 psi | -20..+85 | ±3,0 | ±0,3 |
| 86A-150PG | 0-150 psi | -20..+85 | ±3,0 | ±0,3 |
back to the product overview
Compensated OEM pressure sensors with digital pressure and temperature output
| type | pressure range | temp. (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 5915-0005-D | 0-5 mbar | -25..+85 | 0,03 | ±1,5 |
| AMS 5915-0010-D | 0-10 mbar | -25..+85 | 0,03 | ±1,5 |
| AMS 5915-0020-D | 0-20 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 5915-0035-D | 0-35 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 5915-0050-D | 0-50 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 5915-0100-D | 0-100 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 5915-0200-D | 0-200 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 5915-0350-D | 0-350 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 5915-0500-D | 0-500 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 5915-1000-D | 0-1000 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 5915-2000-D | 0-2000 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 5915-4000-D | 0-4000 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 5915-7000-D | 0-7000 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 5915-10000-D | 0-10 bar | -25..+85 | 0,03 | ±0,5 |
| type | pressure range | temp. (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 5935-0002-D | 0-2,5 mbar | -25..+85 | 0,0008 | ±0,6 |
| AMS 5935-0005-D | 0-5 mbar | -25..+85 | 0,0008 | ±0,5 |
| AMS 5935-0010-D | 0-10 mbar | -25..+85 | 0,0008 | ±0,3 |
| AMS 5935-0020-D | 0-20 mbar | -25..+85 | 0,0008 | ±0,3 |
| AMS 5935-0035-D | 0-35 mbar | -25..+85 | 0,0008 | ±0,3 |
| AMS 5935-0050-D | 0-50 mbar | -25..+85 | 0,0008 | ±0,3 |
| AMS 5935-0100-D | 0-100 mbar | -25..+85 | 0,0008 | ±0,3 |
| AMS 5935-0200-D | 0-200 mbar | -25..+85 | 0,0008 | ±0,1 |
| AMS 5935-0350-D | 0-350 mbar | -25..+85 | 0,0008 | ±0,1 |
| AMS 5935-0500-D | 0-500 mbar | -25..+85 | 0,0008 | ±0,1 |
| AMS 5935-1000-D | 0-1000 mbar | -25..+85 | 0,0008 | ±0,1 |
| type | pressure range | temp.(°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 6915-0005-D | 0-5 mbar | -25..+85 | 0,03 | ±1,5 |
| AMS 6915-0010-D | 0-10 mbar | -25..+85 | 0,03 | ±1,5 |
| AMS 6915-0025-D | 0-25 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 6915-0050-D | 0-50 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 6915-0100-D | 0-100 mbar | -25..+85 | 0,03 | ±1,0 |
| AMS 6915-0200-D | 0-200 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 6915-0350-D | 0-350 mbar | -25..+85 | 0,03 | ±0,5 |
| AMS 6915-1000-D | 0-1000 mbar | -25..+85 | 0.03 | ±0,5 |
| AMS 6915-2000-D | 0-2000 mbar | -25..+85 | 0.03 | ±0,5 |
| AMS 6915-2500-D | 0-2500 mbar | -25..+85 | 0.03 | ±0,5 |
back to the product overview
| type | pressure range | temp.(°C) | resolution (%FS) | error (%FS)RT |
|---|---|---|---|---|
| ME782 | 0-0,5 bar | -25..+125 | 0,05 | ±1,5 |
| ME782 | 0-1 bar | -25..+125 | 0,05 | ±1,5 |
| ME782 | 0-2 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-5 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-10 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-20 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-50 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-100 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-200 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-250 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-400 bar | -25..+125 | 0,05 | ±1,0 |
| ME782 | 0-600 bar | -25..+125 | 0,05 | ±1,5 |
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT | |
|---|---|---|---|---|---|
| SM1221 | 0-15 psi | -40..+105 | 0,008 | ±1 | |
| SM4221 | 0-14,9 psi | -40..+105 | 0,008 | ±1 | |
| SM5221 | 0-2,49 psi | -40..+105 | 0,008 | ±1 | |
| SM6221 | 0-0,79 psi | -40..+105 | 0,008 | ±1 | |
| SM7221 | 0-0,29 psi | -40..+105 | 0,008 | ±1 | |
| SM9233 | 0-2,50 mbar | -20..+85 | 0,0019 | ±0,5 | |
| SM9235 | 0-5 mbar | -20..+85 | 0,0019 | ±0,4 | |
| SM9236 | 0-6 mbar | -20..+85 | 0,0019 | ±0,3 | |
| SM9336 | 0-2,50 mbar | -20..+85 | 0,0019 | ±0,3 | |
| SM9333 | 0-1,25 mbar | -20..+85 | 0,0019 | ±0,5 |
| type | pressure range | temp. (°C) | resolution (mbar) | error (mbar)RT |
|---|---|---|---|---|
| MS5536-CNJU | -1-0,4 bar | -40..+85 | 0,1 | ±9,0 |
| MS5536-CPJU | -0,4-1 bar | -40..+85 | 0,1 | ±9,0 |
| MS5536-60C (obsolet) | 0-60 mbar | 0..+100 | 0,05 | ±0,5 |
| type | pressure range | temp. (°C) | resolution (mbar) | error (mbar)RT |
|---|---|---|---|---|
| MS5547-02BD | -200-2200 mbar | -20..+85 | 0,023 | ±5,0 |
back to the product overview
Media compatible OEM pressure sensors with digital output
| type | pressure range | temp. (°C) | resolution(%span) | error (%span) |
|---|---|---|---|---|
| 85BSD-005PG | 0-5 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-150PG | 0-15 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-030PG | 0-30 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-050PG | 0-50 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-100PG | 0-100 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-150PG | 0-150 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-200PG | 0-200 psi | -40..+125 | ±0,008 | ±1,0 |
| 85BSD-300PG | 0-300 psi | -40..+125 | ±0,008 | ±1,0 |
back to the product overview
| type | pressure range | temp. (°C) | resolution(%span) | error (%span) |
|---|---|---|---|---|
| 86BSD-001PG | 0-1 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-002PG | 0-2 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-005PG | 0-5 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-015PG | 0-15 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-030PG | 0-30 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-050PG | 0-50 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-100PG | 0-100 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-150PG | 0-150 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-200PG | 0-200 psi | -40..+125 | ±0,008 | ±1,0 |
| 86BSD-300PG | 0-300 psi | -40..+125 | ±0,008 | ±1,0 |
back to the product overview
Compensated OEM pressure sensors with analog / digital pressure output
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 5812-0000-D | 0-0,075 psi | -25..+85 | 0,05 | ±1,5 |
| AMS 5812-0001-D | 0-0,15 psi | -25..+85 | 0,05 | ±1,5 |
| AMS 5812-0003-D | 0-0,3 psi | -25..+85 | 0,05 | ±1,0 |
| AMS 5812-0004-D | 0-0,4 psi | -25..+85 | 0,05 | ±1,0 |
| AMS 5812-0008-D | 0-0,8 psi | -25..+85 | 0,05 | ±1,0 |
| AMS 5812-0015-D | 0-1,5 psi | -25..+85 | 0,05 | ±1,0 |
| AMS 5812-0030-D | 0-3 psi | -25..+85 | 0,05 | ±0,5 |
| AMS 5812-0050-D | 0-5 psi | -25..+85 | 0,05 | ±0,5 |
| AMS 5812-0150-D | 0-15 psi | -25..+85 | 0,05 | ±0,5 |
| AMS 5812-0300-D | 0-30 psi | -25..+85 | 0,05 | ±0,5 |
| AMS 5812-0600-D | 0-60 psi | -25..+85 | 0,05 | ±0,5 |
| AMS 5812-1000-D | 0-100 psi | -25..+85 | 0,05 | ±0,5 |
| SM5852-001 | 0,15 psi | -40..+125 | 0,05 | ±2,0 |
| SM5852-003 | 0,3 psi | -40..+125 | 0,05 | ±1,6 |
| SM5852-004 | 0,4 psi | -40..+125 | 0,05 | ±1,6 |
| SM5852-015 | 1,5 psi | -40..+125 | 0,05 | ±1,6 |
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| SM1291 | 0-15 psi | -40..+105 | 0,002 | ±1 |
| SM4291 | 0-14,9 psi | -40..+105 | 0,002 | ±1 |
| SM5291 | 0-2,49 psi | -40..+105 | 0,002 | ±1 |
| SM6291 | 0-0,79 psi | -40..+105 | 0,002 | ±1 |
| SM7291 | 0-0,29 psi | -40..+105 | 0,002 | ±1 |
back to the product overview
PCB pressure sensor modules with analog output
| type | pressure range | temp.(°C) | resolution (%FSO) | error (%FSO)RT | |
|---|---|---|---|---|---|
| AMS 2710-0005-D | 0-5 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 2710-0010-D | 0-10 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 2710-0020-D | 0-20 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2710-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-0005-D | 0-5 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 2711-0010-D | 0-10 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 2711-0020-D | 0-20 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2711-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2712-0005-D | 0-5 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 2712-0010-D | 0-10 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 2712-0020-D | 0-20 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2712-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2712-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 2712-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 2712-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 2712-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 2712-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 2712-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,3 |
back to the product overview
Pressure transmitter with analog pressure output
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT | |
|---|---|---|---|---|---|
| AMS 4710-0005-D | 0-5 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 4710-0010-D | 0-10 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 4710-0020-D | 0-20 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4710-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-0005-D | 0-5 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 4711-0010-D | 0-10 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 4711-0020-D | 0-20 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4711-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4712-0005-D | 0-5 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 4712-0010-D | 0-10 mbar | -25..+85 | 0,05 | ±1,0 | |
| AMS 4712-0020-D | 0-20 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4712-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4712-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 4712-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 4712-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 4712-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 4712-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 4712-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,3 |
back to the product overview
| type | pressure range | temp.(°C) | resolution (%FSO) | error (%FSO)RT | |
|---|---|---|---|---|---|
| AMS 3010-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-4000-D | 0-4000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-7000-D | 0-7000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3010-10000-D | 0-10000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-4000-D | 0-4000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-7000-D | 0-7000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3011-10000-D | 0-10000 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3012-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3012-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 | |
| AMS 3012-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-4000-D | 0-4000 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-7000-D | 0-7000 mbar | -25..+85 | 0,05 | ±0,3 | |
| AMS 3012-10000-D | 0-10000 mbar | -25..+85 | 0,05 | ±0,3 |
back to the product overview
Media compatible pressure transmitter with analog output
| type | pressure range | temperature (°C) | resolution (%FS) | error (%FS)RT |
|---|---|---|---|---|
| U5200 | 0-2 psi | -40..+125 | ±0,1 | ±1,25 |
| U5200 | 0-5 psi | -40..+125 | ±0,1 | ±1,0 |
| U5200 | 0-15 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-30 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-50 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-100 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-150 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-200 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-300 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-500 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-1000 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-3000 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-5000 psi | -40..+125 | ±0,1 | ±0,75 |
| U5200 | 0-10000 psi | -40..+125 | ±0,1 | ±1,25 |
Media compatible ceramic pressure transmitter with analog output
| type | pressure range | temperature (°C) | resolution (%FS) | error (%FS)RT |
|---|---|---|---|---|
| ME900 | 0-10 bar | -20..+85 | ±0,08 | ±1,0 |
| ME900 | 0-20 bar | -20..+85 | ±0,08 | ±1,0 |
| ME900 | 0-50 bar | -20..+85 | ±0,08 | ±1,0 |
| ME900 | 0-100 bar | -20..+85 | ±0,08 | ±1,0 |
Media compatible pressure transmitter with analog / digital output
| type | pressure range | temperature (°C) | resolution (%FS) | error (%FS)RT |
|---|---|---|---|---|
| M3200 | 0-7 bar | -40..+125 | ±0,25 | ±1,5 |
| M3200 | 0-17 bar | -40..+125 | ±0,25 | ±1,5 |
| M3200 | 0-35 bar | -40..+125 | ±0,25 | ±1,5 |
| M3200 | 0-70 bar | -40..+125 | ±0,25 | ±1,5 |
| M3200 | 0-170 bar | -40..+125 | ±0,25 | ±1,5 |
| M3200 | 0-350 bar | -40..+125 | ±0,25 | ±1,5 |
back to the product overview
Pressure switch with two switching outputs
| type | pressure range | temperature (°C) | resolution (%FS) | connection |
|---|---|---|---|---|
| DP001 | -1-1 bar | 0..+50 | ±0,05 | cable |
| DP002 | 0-10 bar | 0..+50 | ±0,1 | cable |
Pressure switch with switching and analog output
| type | pressure range | temperature (°C) | resolution (%FS) | connection |
|---|---|---|---|---|
| standard type | ||||
| DP101-EP | -1-1 bar | -10..+50 | ±0,05 | cable |
| DP111-EPJ | -1-1 bar | -10..+50 | ±0,05 | M8-plug |
| DP102-EP | -1-10 bar | -10..+50 | ±0,1 | cable |
| DP112-EPJ | -1-10 bar | -10..+50 | ±0,1 | M8-plug |
| multifunction type | ||||
| DP101A-EP | -1-1 bar | -10..+50 | ±0,05 | cable |
| DP111A-EPJ | -1-1 bar | -10..+50 | ±0,05 | M8-plug |
| DP102A-EP | -1-10 bar | -10..+50 | ±0,1 | cable |
| DP112A-EPJ | -1-10 bar | -10..+50 | ±0,1 | M8-plug |
| with external sensor head | ||||
| DPH101 | -1-1 bar | -10..+50 | ±0,05 | M3, M5, R1/8 |
| DPH102 | 0-10 bar | -10..+50 | ±0,1 | M5, R1/8 |
back to the product overview
Pressure transmitter with bluetooth signal and battery powered
| type | pressure range | temperature (°C) | resolution (mbar) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 4516-0005-D | 0-5 mbar | 0..+60 | ±0,38 | ±1,5 |
| AMS 4516-0010-D | 0-10 mbar | 0..+60 | ±0,76 | ±1,5 |
| AMS 4516-0050-D | 0-50 mbar | 0..+60 | ±3,81 | ±1,0 |
| AMS 4516-0100-D | 0-100 mbar | 0..+60 | ±7,63 | ±1,0 |
| AMS 4516-0350-D | 0-350 mbar | 0..+60 | ±26,7 | ±0,5 |
| AMS 4516-1000-D | 0-1 bar | 0..+60 | ±76,3 | ±0,5 |
Power supply by a 3V (CR2032) button battery
Media compatible wireless pressure transmitter
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| U5600 | 0-5 psi | -20..+85 | ±0,25 | ±1,0 |
| U5600 | 0-15 psi | -20..+85 | ±0,1 | ±0,75 |
| U5600 | 0-30 psi | -20..+85 | ±0,1 | ±0,75 |
| U5600 | 0-50 psi | -20..+85 | ±0,1 | ±0,75 |
| U5600 | 0-100 psi | -20..+85 | ±0,1 | ±0,75 |
| U5600 | 0-200 psi | -20..+85 | ±0,1 | ±0,75 |
| U5600 | 0-300 psi | -20..+85 | ±0,1 | ±0,75 |
| U5600 | 0-500 psi | -20..+85 | ±0,1 | ±0,75 |
ATEX and CSA HazLoc certified version
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| U5601 | 0-5 psi | -20..+85 | ±0,25 | ±1,0 |
| U5601 | 0-15 psi | -20..+85 | ±0,1 | ±0,75 |
| U5601 | 0-30 psi | -20..+85 | ±0,1 | ±0,75 |
| U5601 | 0-50 psi | -20..+85 | ±0,1 | ±0,75 |
| U5601 | 0-100 psi | -20..+85 | ±0,1 | ±0,75 |
| U5601 | 0-200 psi | -20..+85 | ±0,1 | ±0,75 |
| U5601 | 0-300 psi | -20..+85 | ±0,1 | ±0,75 |
| U5601 | 0-500 psi | -20..+85 | ±0,1 | ±0,75 |
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| M5600 | 0-50 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-100 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-200 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-300 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-500 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-1'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-3'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-5'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-10'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5600 | 0-15'000 psi | -20..+85 | ±0,25 | ±1,0 |
ATEX and CSA HazLoc certified version
| type | pressure range | temperature (°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| M5601 | 0-1'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5601 | 0-3'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5601 | 0-5'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5601 | 0-10'000 psi | -20..+85 | ±0,25 | ±1,0 |
| M5601 | 0-15'000 psi | -20..+85 | ±0,25 | ±1,0 |
back to the product overview
Pressure transmitter with bluetooth and analog signal
| type | pressure range | temp.(°C) | resolution (%FSO) | error (%FSO)RT |
|---|---|---|---|---|
| AMS 3516-0050-D | 0-50 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-0100-D | 0-100 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-0200-D | 0-200 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-0350-D | 0-350 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-0500-D | 0-500 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-1000-D | 0-1000 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-2000-D | 0-2000 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-4000-D | 0-4000 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-7000-D | 0-7000 mbar | -25..+85 | 0,05 | ±0,5 |
| AMS 3516-10000-D | 0-10000 mbar | -25..+85 | 0,05 | ±0,5 |
available in spring 2021
