P.Trace – compact pressure transmitter in stainless steel housing

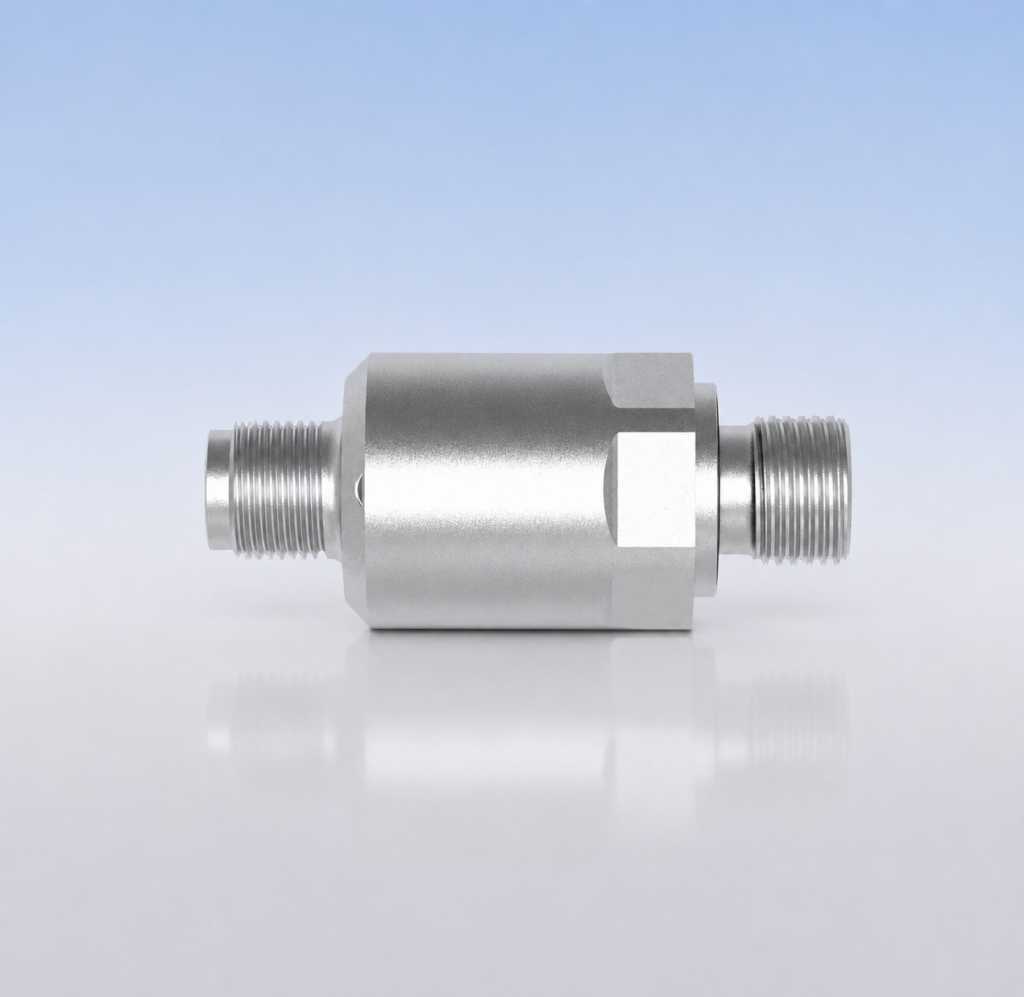

The compact pressure transmitter P.Trace is one of the smallest sensors with a ceramic measuring cell and yet extremely robust. The IP68-rated housing is made of solid stainless steel and designed for continuous industrial use.

The little brother of the P.Touch, which can be programmed via IO-Link or touch display, combines the proven robustness and accuracy of the ceramic measuring cell with an analog output of 0-10V / 1-10V / 4-20mA (standard) with even smaller dimensions. The P.Trace is therefore a pressure transmitter that concentrates on the essentials: accuracy and robustness are paramount.

Variants

The P.Trace is available with either a G1/4” external or internal thread. The electrical connection is made via the widely used M12 connector. To match it perfectly to the medium to be measured, we offer a choice of three different sealing materials: NBR, FKM and EPDM.

The sensor covers several ranges of pressures from vacuum up to 600 bar:

  • -1 to 5 bar
  • 0 to 10 bar
  • 0 to 16 bar
  • 0 to 25 bar
  • 0 to 40 bar
  • 0 to 100 bar
  • 0 to 250 bar
  • 0 to 400 bar
  • 0 to 600 bar

Characterics

  • Pressure range from -1 bar to 600 bar: -1..5 bar / 0..10 bar / 0..16 bar / 0..25 bar / 0..40 bar / 0..100 bar / 0..250 bar / 0..400 bar / 0..600 bar
  • Operating voltage: 14…30 VDC (voltage output)
  • Intrinsic current consumption: < 25 mA
  • Electrical connection: M12 4-pin
  • Output: 0-10 V, 1-10 V, 4-20 mA
  • Short-circuit / reverse polarity protection: yes / yes
  • Long-term drift: ≤ 0.1% FS / a
  • Accuracy: ± 0.5% FS
  • Repeat accuracy: ± 0.2% FS
  • Material (process connection): Stainless steel 316L (corresponds to approx. 1.4404)
  • Weight: 191g (G1/4 “M); 244g (G1/4 ”F)
  • Protection class: IP65, IP67, IP68
  • Available with different seals: NBR, FKM, EPDM
  • Ambient temperature: operation -25°…+80°C, storage -30°…+85°, medium -25°…+100°
  • MTTF (40°C) of 2236 years (continuous operation)

Applications

  • Industrial hydraulics
  • Automation
  • Pneumatic actuators
  • Vacuum lifters
  • Packaging industry
  • Outdoor and indoor use

Download

For information on prices and delivery times or if you have any technical questions, please contact info@amsys-sensor.com.
