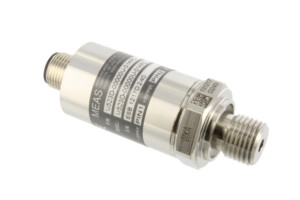

U5200 media compatible pressure transmitter
The U5200 pressure transmitters* can measure absolute, relative, sealed gage* pressures and offer maximum flexibility for different configurations.
These pressure sensors have a high accuracy and a quick turnaround for demanding commercial and heavy industrial applications. The piezoresistive measuring cells are protected by a steel chamber (316L) with oil reservoir against media influence.
This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.
The U5200 is mediaresistent and exceeds the latest heavy industrial CE requirements including overvoltage protection. The circuit is protected from reverse wiring at input and short circuit at output.
Pressure ranges U5200:
0-2 psi, 0-5, 0-15, 0-30, 0-50, 0-100, 0-200, 0-300, 0-500, 0-1k psi, 0-3k psi, 0-5kpsi, 0-10k psi.
Link to pressure converter
U5200 Output signals:
Amplified: 0.5 – 4,5 V (ratiometrical), 0-5 V, 0 -10 V, 1-5 V,1-6 V and current output of 4 -20 mA
U5200 Connectors:
Amplified: Cable, Packard Connector A and B, Bayonet Connector, M12 Connector, AMP Connector, Sumitomo Connector, 1/2“ NPT Conduit
U5200 Pressure ports:
1/4-19 BSPP, G3/8 JIS B2351, 7/16-20UNF Male, 1/4-18 NPT, 1/8-27NPT, G1/4 JIS B2351, 1/4-19 BSPT, 1/4-19 BSPP Female, = 7/16-20UNF Female, M10 x 1.0 mm ISO 6149-2, 7/16-20UNF Female, M12 x 1.5 mm ISO 6149-2, G1/4 DIN 3852, M20 x 1.5 mm ISO 6149-2, M14 x 1.5 mm ISO 6149-2
* Sealed gage is a kind of absolute pressure. It is used in particular for measuring the absolute pressure, at high pressures. However, unlike absolute pressure sensors, the trapped volume was not evacuated.
Features
- pressure ranges: 2 psi – 10 k psi
- absolute, gage, sealed and compound pressure
- 10 V/m EMI Protection
- Reverse Polarity Protection on Input
- Short Circuit Protection on Output
- Up to ±0.1% Accuracy
- Up to < ±0.75% Total Error Band
- excellent long time stability
- Compact Outline
- Stainless steel construction
- Temperature range: -40°C to +125°C
- Excellent stability
- Variety of mechanical and electrical Connections
- CE Compliant and Weatherproof
- RoHS an REACH conform
Applications
- Industrial Process Control and Monitoring
- Advanced HVAC Systems
- Refrigeration Systems
- Automotive Test Stands
- Off-Road Vehicles
- Pumps and Compressors
- Hydraulic/Pneumatic Systems
- Agriculture Equipment
Downloads
- Data sheet pressure transmitter U5200
- Application note aan519: U5200 – Media compatible pressure transmitters for hydraulic applications
- Application note aan516: D5100 – media-compatible differential pressure transmitters (also applies to the U5200)
Article & Ordering Information
Output Signal: 0.5 – 4.5V Ratio = VR, 4 – 20 mA = mA, 1 – 5 V = V
| Part Number | Designation | Pressure Range / Type | Output / Port |
|---|---|---|---|
| 10211125-00 | U5234-000006-002PG | 2 psi – 0.14 bar – Gauge | VR – 1/8-27 NPT |
| – | U5254-000005-005PG | 5 psi – 0.34 bar – Gauge | mA – 1/4 MNPT |
|
10214283-00
|
U5231-000005-005PG | 5 psi – 0.34 bar – Gauge | VR – 1/4-18 NPT |
| 20005077-00 | U5231-000005-015PA | 15 psi – 1.03 bar – Absolute | VR – 1/4-18 NPT |
| 10218617-00 | U5234-000005-015PG | 15 psi – 1.03 bar – Gauge | VR – 1/4-18 NPT |
| – | U5254-000002-002BA | 29.01 psi – 2 bar – Absolute | mA – 1/4 MBSPP |
| – | U5244-000005-030PA | 30 psi – 2.06 bar – Absolute | V – 1/4 MNPT |
| – | U5254-000005-030PA | 30 psi – 2.06 bar – Absolute | mA – 1/4 MNPT |
| 20004868-00 | U5231-000005-030PA | 30 psi – 2.06 bar – Absolute | VR – 1/4-18 NPT |
| – | U5231-000005-100PG | 100 psi – 6.89 bar – Gauge | VR – 1/4-18 NPT |
| – | U5231-000015-100PG | 100 psi – 6.89 bar – Gauge | VR – 1/4-18 NPT – Laser |
| – | U5244-000005-200PA | 200 psi – 13.78 bar – Absolute | V – 1/4 MNPT |
| – | U5254-000005-200PA | 200 psi – 13.78 bar – Absolute | mA – 1/4 MNPT |
| – | U5254-000002-014BA | 203.05 psi – 14 bar – Absolute | mA – 1/4 MBSPP |
| – | U5231-000004-300PA | 300 psi – 20.68 bar – Absolute | VR – 7/16-20UNF Male |
| – | U5231-000005-300PA | 300 psi – 20.68 bar – Absolute | VR – 1/4-18 NPT |
| 10211049-00 | U5231-000004-500PA | 500 psi – 34.47 bar – Absolute | VR – 7/16-20UNF Male |
| – | U5231-000005-500PA | 500 psi – 34.47 bar – Absolute | VR – 1/4-18 NPT |
| 20004868-01 | U5231-000005-500PG | 500 psi – 34.47 bar – Gauge | VR – 1/4-18 NPT |
| 20004868-04 | U5234-000014-500PA | 500 psi – 34.47 bar – Absolute | VR – 7/16-20UNF Male |
| – | U5231-000002-035BA | 507.63 psi – 35 bar – Absolute | VR – 1/4”-19 BSPP |
| – | U5236-000004-01KPA | 1000 psi – 68.95 bar – Absolute | VR – 7/16-20UNF Male |
| 20004868-06 | U5231-000002-070BG | 1015.26 psi – 70 bar – Gauge | VR – 1/4”-19 BSPP |
| – | U5234-000004-10KPG | 10000 psi – 689.47 bar – Gauge | VR – 7/16-20UNF Male |
For information on prices and delivery times or if you have any technical questions, please contact info@amsys-sensor.com.
