AMS 6832 – small DIP6 analog/digital low pressure sensor

AMS 6832 analog/digital low pressure sensor

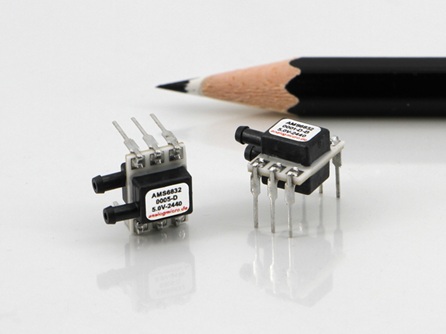

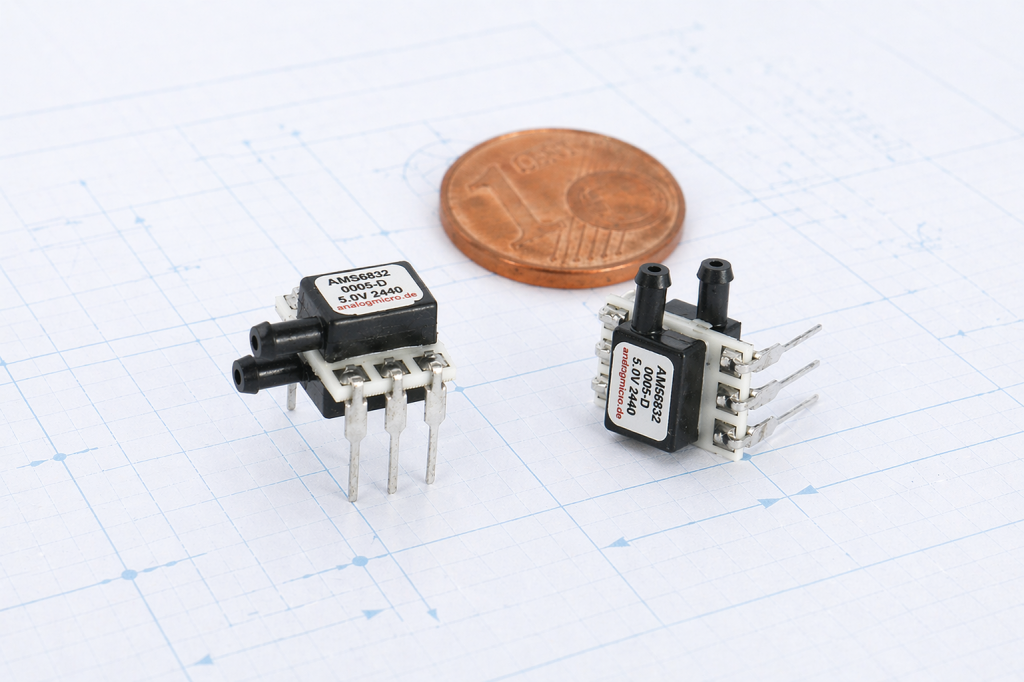

With a footprint of only 7.6 x 7.2 mm², the AMS 6832 sensors housed in a DIL-6 package are the smallest differential pressure sensors on a robust ceramic substrate. At the same time, they offer a 24-bit I²C as well as an ratiometric analog output for pressure values. Temperature is provided as a 13-bit value. The compact pressure sensors are designed for precise pressure measurements in confined spaces and are now available in an extended pressure range from 125 Pa up to 2 bar. With this sensor, AMSYS offers a pressure sensor that combines highest analog measurement accuracy with a compact package.

These pressure sensors are extensively calibrated and compensated. They are characterized by extremely low measurement errors at room temperature as well as a very low total error in the compensated temperature range from -25 to 85 °C of only 0.5 .. 2 %FS, depending on the pressure range. To simplify initial operation and first tests, the AMS 6832 USB Starter Kit is available. It enables direct measurement data acquisition via a Windows PC as well as configuration of the sensor’s I²C address.

Pressure variants and ranges of the AMS 6832:

Ultra-low pressure differential / relative: 0 .. 250; 0 .. 500, 0 .. 1000 and 0 .. 1250 Pa;
Ultra-low pressure bidirectional differential: ±125; ±250; ±500, ±1000 and ±1250 Pa
Low pressure differential / relative: 0 .. 20, 0 .. 35, 0 .. 50 and 0 .. 100 mbar
Low pressure bidirectional differential: ±20, ±35, ±50 and ±100 mbar
Standard pressure ranges, differential / relative: 0 .. 200, 0 .. 350, 0 .. 500, 0 .. 1000 and 0 .. 2000 mbar
Standard pressure ranges, bidirectional differential: ±200, ±350, ±500 and ±1000 mbar
Absolute pressure ranges: 0 .. 500, 0 .. 1000, 0 .. 1500 and 0 .. 2000 mbar
Barometric absolute pressure range: 700 .. 1200 mbar

For applications with different requirements regarding interface, package or pressure range, the digital AMS 6915 with I²C output and the analog AMS 6916 in a DIP-8 package are available as complementary sensor series.

Compared with the analog/digital AMS 5812 — which is ideally suited for medical applications featuring a ceramic cap and stainless-steel pressure ports—the AMS 6832 offers a space-saving alternative with a modern ASIC in a plastic housing.

Accessories for easy commissioning via USB interface of a PC, for programming an individual I2C bus address, and for graphical representation on the PC: USB Starter Kit AMS 6832

Note: The AMS 6832 can be custom calibrated regarding the pressure range as well as for lower supply voltages. Special designs, such as different pressure connections, are also available upon request.

You will find more detailed explanations regarding the general design and function principle of these pressure sensors in our whitepapers section.

Features

• Pressure ranges: 0 .. 250 Pa to 0 .. 2 bar differential / relative
  ±125 Pa to ±1 bar bidirectional differential
  0 .. 500 mbar to 0 .. 2 bar absolute
  700 .. 1200 mbar barometric
• Output signal pressure: 24-bit I²C and analog voltage
• Output temperature: 13-bit I²C
• Pressure connection: horizontal tube connection
• Housing/size: DIL-6, 7.6 x 7.2 mm²
• Operating temperature: -25 to 85 °C
• Power supply: 4.5 to 5.5 V
• RoHS and REACH compliant
• Product made in Germany

Applications

Medical technology

• Ventilators
• Sleep apnea therapy devices (CPAP)
• Spirometers
• Anesthesia devices
• Dialysis machines
• Infusion pumps
• Oxygen concentrators
• Vacuum suction pumps
• Insufflators
• Blood glucose meters
• Pulse oximeters
• Computed tomography (CT)

HVAC and measurement technology

• Volumetric flow measurement
• Duct pressure monitoring
• Room pressure monitoring
• Filter monitoring

Downloads

• Data sheet pressure sensor AMS 6832
• Application note 508: AMS 5812 – Media compatibility of silicon pressure sensors (Also applies to AMS 6832)
• Application note 521: AMS 5812 – Ratiometry in pressure sensors (Also applies to AMS 6832)

For information on prices and delivery times or if you have any technical questions, please contact info@amsys-sensor.com.
